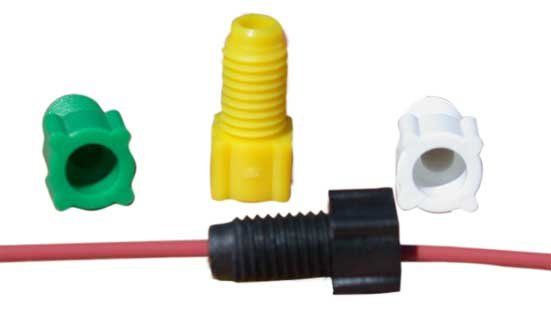

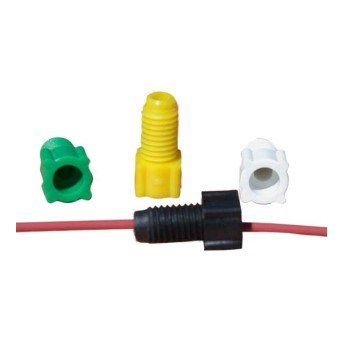

Applied Research ofrece una amplia variedad de fittings y accesorios par aplicaciones a baja y media presión.

Flanged Fitting Series

For 1/16” tubing

Ref. Descripción
57.9.2.062.40 Nut, PP, flanged white 1/16", 1/4-28
57.9.2.062.41 Nut, PP, flanged red 1/16", 1/4-28
57.9.2.062.42 Nut, PP, flanged yellow 1/16", 1/4-28
57.9.2.062.43 Nut, PP, flanged blue 1/16", 1/4-28
57.9.2.062.45 Nut, PP, flanged green 1/16", 1/4-28
57.9.2.062.47 Nut, PP, flanged black 1/16", 1/4-28
57.9.2.062.90 Washer, PP, for flanged nut 1/16"


For 1/8” tubing

Ref. Descripción
57.9.2.125.40 Nut, PP, flanged white 1/8", 1/4-28
57.9.2.125.41 Nut, PP, flanged red 1/8", 1/4-28
57.9.2.125.42 Nut, PP, flanged yellow 1/8", 1/4-28
57.9.2.125.43 Nut, PP, flanged blue 1/8", 1/4-28
57.9.2.125.45 Nut, PP, flanged green 1/8", 1/4-28
57.9.2.125.47 Nut, PP, flanged black 1/8", 1/4-28
57.9.2.125.90 Washer, PP, for flanged nut 1/8"
Flanging Tool





Flanging tool kits

Ref. Descripción
70.0100.001 Flangy, kit in plastic case (flanging tool with 4 flanging discs)
70.0100.002 Flangy, combi kit in plastic case (flanging tool with 4 flanging discs PTFE tubing, selection of flanged nuts and PP rings)


Flanging tool spare parts

Ref. Descripción
70.0100.105 Flangy, flanging disc with 0.5 mm SS pin for PEEK tubing
70.0100.108 Flangy, flanging disc with 0.8 mm polymer pin
70.0100.308 Flangy, flanging disc with 0.8 mm Titanium pin
70.0100.110 Flangy, flanging disc with 1.0 mm polymer pin
70.0100.113 Flangy, flanging disc with 1.3 mm polymer pin
70.0100.313 Flangy, flanging disc with 1.3 mm Titanium pin
70.0100.115 Flangy, flanging disc with 1.5 mm polymer pin
70.0101.010 Flangy, clamp pair. Spare part for 70.0100.00x
Flange-free Fitting Series

PEEK fitting for 1/16 tubing

Ref. Descripción
58.1.2.062.40 Nut, PEEK, flangefree natural 1/16", 1/4-28
58.1.2.062.41 Nut, PEEK, flangefree red 1/16", 1/4-28
58.1.2.062.42 Nut, PEEK, flangefree yellow 1/16", 1/4-28
58.1.2.062.43 Nut, PEEK, flangefree blue 1/16", 1/4-28
58.1.2.062.45 Nut, PEEK, flangefree green 1/16", 1/4-28
58.1.2.062.47 Nut, PEEK, flangefree black 1/16", 1/4-28
59.2.1.062.00 Ferrule, PTFE, single, 1/16"
59.5.1.062.00 Ferrule, ETFE, single, 1/16"
59.10.1.062.00 Ferrule, KEL-F, single, 1/16"


PEEK fitting for 1/8 tubing

Ref. Descripción
58.1.2.125.40 Nut, PEEK, flangefree natural 1/8", 1/4-28
58.1.2.125.41 Nut, PEEK, flangefree red 1/8", 1/4-28
58.1.2.125.42 Nut, PEEK, flangefree yellow 1/8", 1/4-28
58.1.2.125.43 Nut, PEEK, flangefree blue 1/8", 1/4-28
58.1.2.125.45 Nut, PEEK, flangefree green 1/8", 1/4-28
58.1.2.125.47 Nut, PEEK, flangefree black 1/8", 1/4-28
59.1.1.125.00 Ferrule, PEEK, single, 1/8"
59.5.1.125.00 Ferrule, ETFE, single, 1/8"

Delrin fitting for 1/16 tubing

Ref. Descripción
58.8.2.062.41 Nut, Delrin, flangeless red 1/16", 1/4-28
58.8.2.062.42 Nut, Delrin, flangeless yellow 1/16", 1/4-28
58.8.2.062.43 Nut, Delrin, flangeless blue 1/16", 1/4-28
58.8.2.062.45 Nut, Delrin, flangeless green 1/16", 1/4-28
58.8.2.062.47 Nut, Delrin, flangeless black 1/16", 1/4-28
58.8.2.062.48 Nut, Delrin, flangeless white 1/16", 1/4-28
59.2.1.062.00 Ferrule, PTFE, single, 1/16"
59.5.1.062.00 Ferrule, ETFE, single, 1/16"

Delrin fitting for 1/8 tubing

Ref. Descripción
58.8.2.125.41 Nut, Delrin, flangeless 1/8", red, 1/4-28
58.8.2.125.42 Nut, Delrin, flangeless 1/8", yellow, 1/4-28
58.8.2.125.43 Nut, Delrin, flangeless 1/8", blue, 1/4-28
58.8.2.125.45 Nut, Delrin, flangeless 1/8", green, 1/4-28
58.8.2.125.47 Nut, Delrin, flangeless 1/8", black, 1/4-28
58.8.2.125.48 Nut, Delrin, flangeless 1/8", white, 1/4-28
59.5.1.125.00 Ferrule, ETFE, single, 1/8"

Accessories for low and Medium Pressure FItting Series


Ferrules

Ref. Descripción
59.2.1.062.00 Ferrule, PTFE, single, 1/16"
59.5.1.062.00 Ferrule, ETFE, single, 1/16"
59.10.1.062.00 Ferrule, KEL-F, single, 1/16"
59.1.1.125.00 Ferrule, PEEK, single, 1/8"
59.5.1.125.00 Ferrule, ETFE, single, 1/8"
59.10.1.125.70 Ferrule, KEL-F, single, for No-Ox fitting
59.2.2.062.00 Ferrule, PTFE, reducing, 1/8" - 1/16"

Unions

Ref. Descripción
55.1.21125.08-00 Union, PEEK, 1/4-28, bore 0.8 mm, body only
55.1.21125.08-01 Union, PEEK, 1/4-28, bore 0.8 mm, complete
55.1.21125.15-00 Union, PEEK, 1/4-28, bore 1.5 mm, body only
55.1.21125.15-01 Union, PEEK, 1/4-28, bore 1.5 mm, complete
55.8.20125.00-00 Union, Nylon, 1/4-28, body only

TEES

Ref. Descripción
55.1.31125.08-00 TEE, PEEK, 1/4-28, bore 0.8 mm, body only
55.1.31125.08-01 TEE, PEEK, 1/4-28, bore 0.8 mm, complete
55.1.31125.15-00 TEE, PEEK, 1/4-28, bore 1.5 mm, body only
55.1.31125.15-01 TEE, PEEK, 1/4-28, bore 1.5 mm, complete

Cross

Ref. Descripción
55.1.41125.08-00 Cross, PEEK, 1/4-28, bore 0.8 mm, body only
55.1.41125.08-01 Cross, PEEK, 1/4-28, bore 0.8 mm, complete
55.1.41125.15-00 Cross, PEEK, 1/4-28, bore 1.5 mm, body only
55.1.41125.15-01 Cross, PEEK, 1/4-28, bore 1.5 mm, complete

Plug

Ref. Descripción
53.1.200400-00 Plug, PEEK, 10-32
53.1.200500-00 Plug, PEEK, 1/4-28
53.1.200600-00 Plug, PEEK, M6
