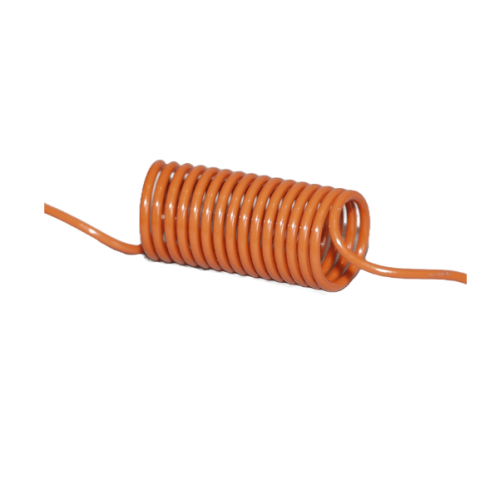

PEEK FlexiTube
Applied Research utiliza solo los mejores tubos PEEK para la producción de nuestro FlexiTube.
| Tipo | Coil Resting Position | Coil Extended Position | FlexiTube Fully Extended | Total Tube Lenght |
| 2 | 10 | 30 | 330 | 710 |
| 3 | 20 | 120 | 420 | 945 |
| 4 | 35 | 200 | 500 | 1225 |
| 5 | 50 | 300 | 600 | 1585 |
| 6 | 100 | 400 | 700 | 2060 |
| 7 | 150 | 500 | 900 | 3150 |
| 8 | 170 | 8000 | 1100 | 4710 |
| 9 | 225 | 1100 | 1400 | 6100 |
| 10 | 250 | 1300 | 1600 | 6930 |
Double Striped color coded FlexiTube UltraT (Extra-Low Tolerance)
| Tipo | Inner Diameter 0.064 mm |
Inner Diameter 0.13 mm |
Inner Diameter 0.18 mm |
Inner Diameter 0.25 mm |
| 2 | 41.159.006.9002 | 41.159.013.9102 | 41.159.018.9202 | 41.159.025.9302 |
| 3 | 41.159.006.9003 | 41.159.013.9103 | 41.159.018.9203 | 41.159.025.9303 |
| 4 | 41.159.006.9004 | 41.159.013.9104 | 41.159.018.9204 | 41.159.025.9304 |
| 5 | 41.159.006.9005 | 41.159.013.9105 | 41.159.018.9205 | 41.159.025.9305 |
| 6 | 41.159.006.9006 | 41.159.013.9106 | 41.159.018.9206 | 41.159.025.9306 |
| 7 | 41.159.006.9007 | 41.159.013.9107 | 41.159.018.9207 | 41.159.025.9307 |
| 8 | 41.159.006.9008 | 41.159.013.9108 | 41.159.018.9208 | 41.159.025.9308 |
| 9 | 41.159.006.9009 | 41.159.013.9109 | 41.159.018.9209 | 41.159.025.9309 |
| 10 | 41.159.006.9010 | 41.159.013.9110 | 41.159.018.9210 | 41.159.025.9310 |
Striped color coded FlexiTube
| Tipo | Inner Diameter 0.13 mm |
Inner Diameter 0.18 mm |
Inner Diameter 0.25 mm |
Inner Diameter 0.50 mm |
Inner Diameter 0.75 mm |
| 2 | 41.159.013.0102 | 41.159.018.0202 | 41.159.025.0302 | 41.159.050.0402 | 41.159.075.0502 |
| 3 | 41.159.013.0103 | 41.159.018.0203 | 41.159.025.0303 | 41.159.050.0403 | 41.159.075.0503 |
| 4 | 41.159.013.0104 | 41.159.018.0204 | 41.159.025.0304 | 41.159.050.0404 | 41.159.075.0504 |
| 5 | 41.159.013.0105 | 41.159.018.0205 | 41.159.025.0305 | 41.159.050.0405 | 41.159.075.0505 |
| 6 | 41.159.013.0106 | 41.159.018.0206 | 41.159.025.0306 | 41.159.050.0406 | 41.159.075.0506 |
| 7 | 41.159.013.0107 | 41.159.018.0207 | 41.159.025.0307 | 41.159.050.0407 | 41.159.075.0507 |
| 8 | 41.159.013.0108 | 41.159.018.0208 | 41.159.025.0308 | 41.159.050.0408 | 41.159.075.0508 |
| 9 | 41.159.013.0109 | 41.159.018.0209 | 41.159.025.0309 | 41.159.050.0409 | 41.159.075.0509 |
| 10 | 41.159.013.0110 | 41.159.018.0210 | 41.159.025.0310 | 41.159.050.0410 | 41.159.075.0510 |
Solid color coded FlexiTube
| Tipo | Inner Diameter 0.13 mm |
Inner Diameter 0.18 mm |
Inner Diameter 0.25 mm |
Inner Diameter 0.50 mm |
Inner Diameter 0.75 mm |
| 2 | 41.159.013.5102 | 41.159.018.5202 | 41.159.025.5302 | 41.159.050.5402 | 41.159.075.5502 |
| 3 | 41.159.013.5103 | 41.159.018.5203 | 41.159.025.5303 | 41.159.050.5403 | 41.159.075.5503 |
| 4 | 41.159.013.5104 | 41.159.018.5204 | 41.159.025.5304 | 41.159.050.5404 | 41.159.075.5504 |
| 5 | 41.159.013.5105 | 41.159.018.5205 | 41.159.025.5305 | 41.159.050.5405 | 41.159.075.5505 |
| 6 | 41.159.013.5106 | 41.159.018.5206 | 41.159.025.5306 | 41.159.050.5406 | 41.159.075.5506 |
| 7 | 41.159.013.5107 | 41.159.018.5207 | 41.159.025.5307 | 41.159.050.5407 | 41.159.075.5507 |
| 8 | 41.159.013.5108 | 41.159.018.5208 | 41.159.025.5308 | 41.159.050.5408 | 41.159.075.5508 |
| 9 | 41.159.013.5109 | 41.159.018.5209 | 41.159.025.5309 | 41.159.050.5409 | 41.159.075.5509 |
| 10 | 41.159.013.5110 | 41.159.018.5210 | 41.159.025.5310 | 41.159.050.5410 | 41.159.075.5510 |
