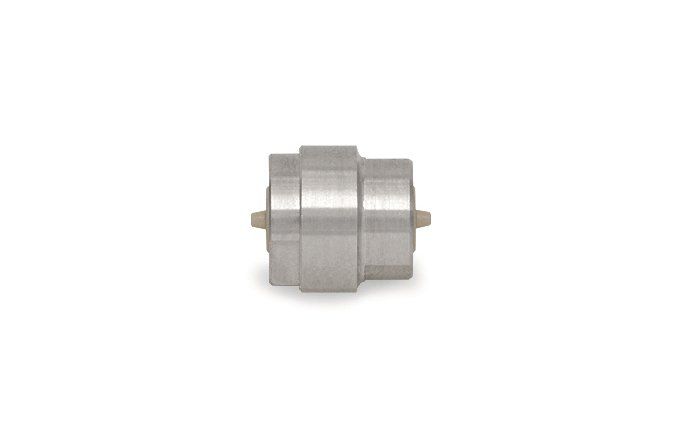

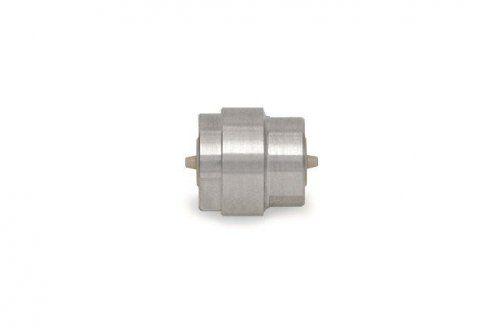

EXP® Trap Column Cartridges
Los EXP Trap Column Cartridges permiten eliminar rápidamente detergentes o sales que pueden afectar el proceso de ionización en el trabajo de EM. Esta técnica de captura puede concentrar la muestra directamente en línea, lo que permite una mayor recuperación del valioso material de muestra en comparación con las técnicas fuera de línea. La captura en línea se presta fácilmente a la automatización para análisis de alto rendimiento en aplicaciones UHPLC/MS.
- Incluye 3 cartuchos unidireccionales.
- Clasificado para más de 20 000 psi (más de 1400 bar).
- Reemplazo de la trampa manual, sin herramientas.
REF. | VOLUMEN LECHO | TASA CARGA | DIMENSIONES (mm) | TAMAÑO EMPAQUETADO | FASE |
15-03964-HA | 4µL | 2mL/min | 1.0x5 | 2.7µm | C18 |
15-03964-HB | 4µL | 2mL/min | 1.0x5 | 2.7µm | C8 |
15-03964-HD | 4µL | 2mL/min | 1.0x5 | 2.7µm | HILIC |
15-03964-HE | 4µL | 2mL/min | 1.0x5 | 2.7µm | Rp-Amide |
15-03964-HF | 4µL | 2mL/min | 1.0x5 | 2.7µm | Phenyl-Hexyl |
15-03964-HN | 4µL | 2mL/min | 1.0x5 | 2.7µm | Peptide ES-C18 |
15-03969-HA | 10µL | 4mL/min | 1.5x5 | 2.7µm | C18 |
15-03969-HB | 10µL | 4mL/min | 1.5x5 | 2.7µm | C8 |
15-03969-HD | 10µL | 4mL/min | 1.5x5 | 2.7µm | HILIC |
15-03969-HE | 10µL | 4mL/min | 1.5x5 | 2.7µm | Rp-Amide |
15-03969-HF | 10µL | 4mL/min | 1.5x5 | 2.7µm | Phenyl-Hexyl |
15-03969-HN | 10µL | 4mL/min | 1.5x5 | 2.7µm | Peptide ES-C18 |
15-03973-HA | 20µL | 6mL/min | 2.1x5 | 2.7µm | C18 |
15-03973-HB | 20µL | 6mL/min | 2.1x5 | 2.7µm | C8 |
15-03973-HD | 20µL | 6mL/min | 2.1x5 | 2.7µm | HILIC |
15-03973-HE | 20µL | 6mL/min | 2.1x5 | 2.7µm | Rp-Amide |
15-03973-HF | 20µL | 6mL/min | 2.1x5 | 2.7µm | Phenyl-Hexyl |
15-03973-HN | 20µL | 6mL/min | 2.1x5 | 2.7µm | Peptide ES-C18 |
15-03978-HA | 40µL | 8mL/min | 3.0x5 | 2.7µm | C18 |
15-03978-HB | 40µL | 8mL/min | 3.0x5 | 2.7µm | C8 |
15-03978-HD | 40µL | 8mL/min | 3.0x5 | 2.7µm | HILIC |
15-03978-HE | 40µL | 8mL/min | 3.0x5 | 2.7µm | Rp-Amide |
15-03978-HF | 40µL | 8mL/min | 3.0x5 | 2.7µm | Phenyl-Hexyl |
15-03978-HN | 40µL | 8mL/min | 3.0x5 | 2.7µm | Peptide ES-C18 |
15-03983-HA | 100µL | 10mL/min | 4.6x5 | 2.7µm | C18 |
15-03983-HB | 100µL | 10mL/min | 4.6x5 | 2.7µm | C8 |
15-03983-HD | 100µL | 10mL/min | 4.6x5 | 2.7µm | HILIC |
15-03983-HE | 100µL | 10mL/min | 4.6x5 | 2.7µm | Rp-Amide |
15-03983-HF | 100µL | 10mL/min | 4.6x5 | 2.7µm | Phenyl-Hexyl |
15-03983-HN | 100µL | 10mL/min | 4.6x5 | 2.7µm | Peptide ES-C18 |
15-03964-HG | 4µL | 2mL/min | 1.0x5 | 3,0µm | C18 |
15-03964-HH | 4µL | 2mL/min | 1.0x5 | 3,0µm | C8 |
15-03964-HI | 4µL | 2mL/min | 1.0x5 | 3,0µm | C4 |
15-03964-HJ | 4µL | 2mL/min | 1.0x5 | 3,0µm | HILIC |
15-03964-HK | 4µL | 2mL/min | 1.0x5 | 3,0µm | Phenyl-Hexyl |
15-03964-HL | 4µL | 2mL/min | 1.0x5 | 3,0µm | SAX |
15-03964-HM | 4µL | 2mL/min | 1.0x5 | 3,0µm | SCX |
15-03969-HG | 10µL | 4mL/min | 1.5x5 | 3,0µm | C18 |
15-03969-HH | 10µL | 4mL/min | 1.5x5 | 3,0µm | C8 |
15-03969-HI | 10µL | 4mL/min | 1.5x5 | 3,0µm | C4 |
15-03969-HJ | 10µL | 4mL/min | 1.5x5 | 3,0µm | HILIC |
15-03969-HK | 10µL | 4mL/min | 1.5x5 | 3,0µm | Phenyl-Hexyl |
15-03969-HL | 10µL | 4mL/min | 1.5x5 | 3,0µm | SAX |
15-03969-HM | 10µL | 4mL/min | 1.5x5 | 3,0µm | SCX |
15-03973-HG | 20µL | 6mL/min | 2.1x5 | 3,0µm | C18 |
15-03973-HH | 20µL | 6mL/min | 2.1x5 | 3,0µm | C8 |
15-03973-HI | 20µL | 6mL/min | 2.1x5 | 3,0µm | C4 |
15-03973-HJ | 20µL | 6mL/min | 2.1x5 | 3,0µm | HILIC |
15-03973-HK | 20µL | 6mL/min | 2.1x5 | 3,0µm | Phenyl-Hexyl |
15-03973-HL | 20µL | 6mL/min | 2.1x5 | 3,0µm | SAX |
15-03973-HM | 20µL | 6mL/min | 2.1x5 | 3,0µm | SCX |
15-03978-HG | 40µL | 8mL/min | 3.0x5 | 3,0µm | C18 |
15-03978-HH | 40µL | 8mL/min | 3.0x5 | 3,0µm | C8 |
15-03978-HI | 40µL | 8mL/min | 3.0x5 | 3,0µm | C4 |
15-03978-HJ | 40µL | 8mL/min | 3.0x5 | 3,0µm | HILIC |
15-03978-HK | 40µL | 8mL/min | 3.0x5 | 3,0µm | Phenyl-Hexyl |
15-03978-HL | 40µL | 8mL/min | 3.0x5 | 3,0µm | SAX |
15-03978-HM | 40µL | 8mL/min | 3.0x5 | 3,0µm | SCX |
15-03983-HG | 100µL | 10mL/min | 4.6x5 | 3,0µm | C18 |
15-03983-HH | 100µL | 10mL/min | 4.6x5 | 3,0µm | C8 |
15-03983-HI | 100µL | 10mL/min | 4.6x5 | 3,0µm | C4 |
15-03983-HJ | 100µL | 10mL/min | 4.6x5 | 3,0µm | HILIC |
15-03983-HK | 100µL | 10mL/min | 4.6x5 | 3,0µm | Phenyl-Hexyl |
15-03983-HL | 100µL | 10mL/min | 4.6x5 | 3,0µm | SAX |
15-03983-HM | 100µL | 10mL/min | 4.6x5 | 3,0µm | SCX |
15-03964-HP | 4µL | 2mL/min | 1.0x5 | 5.0µm | C18 |
15-03964-HQ | 4µL | 2mL/min | 1.0x5 | 5.0µm | C8 |
15-03964-HR | 4µL | 2mL/min | 1.0x5 | 5.0µm | HILIC |
15-03964-HS | 4µL | 2mL/min | 1.0x5 | 5.0µm | Phenyl-Hexyl |
15-03964-HV | 4µL | 2mL/min | 1.0x5 | 5.0µm | Penta-HILIC |
15-03964-HU | 4µL | 2mL/min | 1.0x5 | 5.0µm | ES-CN |
15-03964-HT | 4µL | 2mL/min | 1.0x5 | 5.0µm | PFP |
15-03969-HP | 10µL | 4mL/min | 1.5x5 | 5.0µm | C18 |
15-03969-HQ | 10µL | 4mL/min | 1.5x5 | 5.0µm | C8 |
15-03969-HR | 10µL | 4mL/min | 1.5x5 | 5.0µm | HILIC |
15-03969-HS | 10µL | 4mL/min | 1.5x5 | 5.0µm | Phenyl-Hexyl |
15-03969-HV | 10µL | 4mL/min | 1.5x5 | 5.0µm | Penta-HILIC |
15-03969-HU | 10µL | 4mL/min | 1.5x5 | 5.0µm | ES-CN |
15-03969-HT | 10µL | 4mL/min | 1.5x5 | 5.0µm | PFP |
15-03973-HP | 20µL | 6mL/min | 2.1x5 | 5.0µm | C18 |
15-03973-HQ | 20µL | 6mL/min | 2.1x5 | 5.0µm | C8 |
15-03973-HR | 20µL | 6mL/min | 2.1x5 | 5.0µm | HILIC |
15-03973-HS | 20µL | 6mL/min | 2.1x5 | 5.0µm | Phenyl-Hexyl |
15-03973-HV | 20µL | 6mL/min | 2.1x5 | 5.0µm | Penta-HILIC |
15-03973-HU | 20µL | 6mL/min | 2.1x5 | 5.0µm | ES-CN |
15-03973-HT | 20µL | 6mL/min | 2.1x5 | 5.0µm | PFP |
15-03978-HP | 40µL | 8mL/min | 3.0x5 | 5.0µm | C18 |
15-03978-HQ | 40µL | 8mL/min | 3.0x5 | 5.0µm | C8 |
15-03978-HR | 40µL | 8mL/min | 3.0x5 | 5.0µm | HILIC |
15-03978-HS | 40µL | 8mL/min | 3.0x5 | 5.0µm | Phenyl-Hexyl |
15-03978-HV | 40µL | 8mL/min | 3.0x5 | 5.0µm | Penta-HILIC |
15-03978-HU | 40µL | 8mL/min | 3.0x5 | 5.0µm | ES-CN |
15-03978-HT | 40µL | 8mL/min | 3.0x5 | 5.0µm | PFP |
15-03983-HP | 100µL | 10mL/min | 4.6x5 | 5.0µm | C18 |
15-03983-HQ | 100µL | 10mL/min | 4.6x5 | 5.0µm | C8 |
15-03983-HR | 100µL | 10mL/min | 4.6x5 | 5.0µm | HILIC |
15-03983-HS | 100µL | 10mL/min | 4.6x5 | 5.0µm | Phenyl-Hexyl |
15-03983-HV | 100µL | 10mL/min | 4.6x5 | 5.0µm | Penta-HILIC |
15-03983-HU | 100µL | 10mL/min | 4.6x5 | 5.0µm | ES-CN |
15-03983-HT | 100µL | 10mL/min | 4.6x5 | 5.0µm | PFP |
