High Pressure Fittings PEEK
Todos los accesorios y conectores estándar de Applied Research están fabricados con PEEK virgen fabricado por Victrex.
VER MÁS

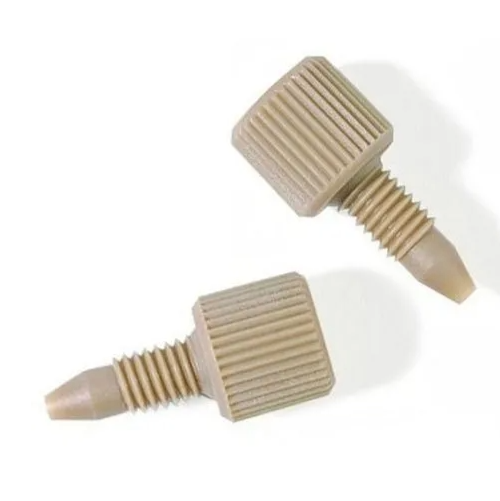

One-Piece Fittings
Fingertight
| P/N | Description |
|---|---|
| 52.1.1.062.100 | Fitting, PEEK, one-piece fingertight, 10-32 |
| 52.1.1.062.110 | Fitting, PEEK, one-piece fingertight long, 10-32 |
| 52.1.1.062.240 | Fitting, PEEK, one-piece fingertight narrow hex-head, 10-32 |
| 52.1.1.062.190 | Fitting, PEEK, one-piece fingertight short head, 10-32 |
Hex-Head
| P/N | Description |
|---|---|
| 52.1.1.062.210 | Fitting, PEEK, one-piece hex-head long, 10-32 |
| 52.1.1.062.220 | Fitting, PEEK, one-piece hex-head short, 10-32 |
Combi-Head
| P/N | Description |
|---|---|
| 52.1.1.062.500 | Fitting, PEEK, one-piece natural, combi-head |
| 52.1.1.062.501 | Fitting, PEEK, one-piece red, combi-head |
| 52.1.1.062.502 | Fitting, PEEK, one-piece yellow, combi-head |
| 52.1.1.062.503 | Fitting, PEEK, one-piece blue, combi-head |
| 52.1.1.062.505 | Fitting, PEEK, one-piece green, combi-head |
| 52.1.1.062.507 | Fitting, PEEK, one-piece black, combi-head |
Two-Piece Nut/Ferrule combinations
Fingertight
| P/N | Description |
|---|---|
| 58.1.1.062.100 | Nut, PEEK, fingertight for double ferrule, 10-32 |
| 58.1.1.062.160 | Nut, PEEK, fingertight for single ferrule, 10-32 |
Hex-Head
| P/N | Description |
|---|---|
| 58.1.1.062.210 | Nut, PEEK, hex-head long for double ferrule, 10-32 |
| 58.1.1.062.220 | Nut, PEEK, hex-head short for double ferrule, 10-32 |
Ferrules
| P/N | Description |
|---|---|
| 59.1.0.062.20 | Ferrule, PEEK, double, 1/16" |
| 59.1.0.062.00 | Ferrule, PEEK, single, 1/16" |
| 59.1.0.062.10 | Ferrule, PEEK, solid cone, 10-32 |
| 59.1.0.062.30 | Ferrule, PEEK, special, 1/16" (for use with our PEEK sample loops) |
Connectors
Union
| P/N | Description |
|---|---|
| 55.1.20062.03-00 | Union, PEEK, 10-32, bore 0.3 mm, body only |
| 55.1.20062.03-01 | Union, PEEK, 10-32, bore 0.3 mm, complete |
Tee
| P/N | Description |
|---|---|
| 55.1.30062.03-00 | Tee, PEEK, 10-32, bore 0.3 mm, body only |
| 55.1.30062.03-01 | Tee, PEEK, 10-32, bore 0.3 mm, complete |
Mixing Tee
| P/N | Description |
|---|---|
| 55.1.33362.03-01 |
Tee, PEEK, mixing, complete
|
Cross
| P/N | Description |
|---|---|
| 55.1.40062.03-00 | Cross, PEEK, 10-32, bore 0.3 mm, body only |
| 55.1.40062.03-01 | Cross, PEEK, 10-32, bore 0.3 mm, complete |
