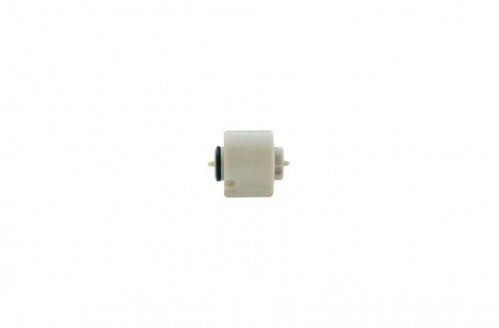

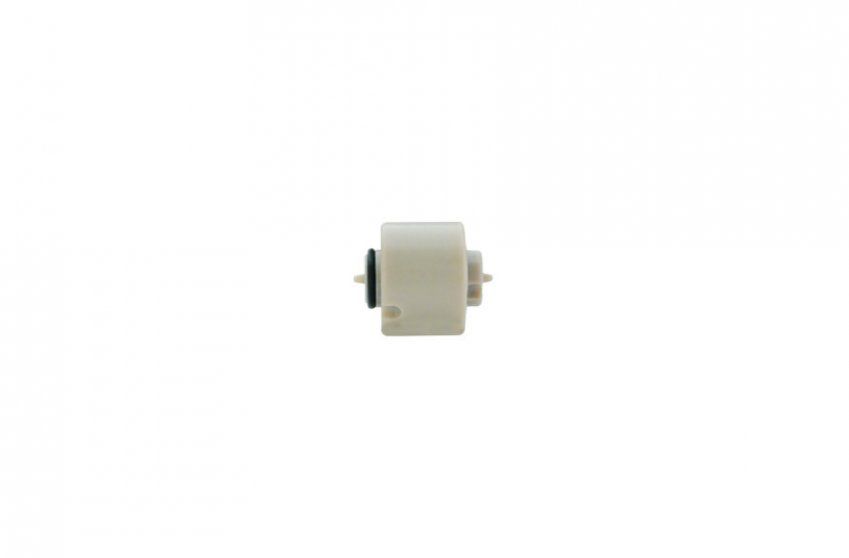

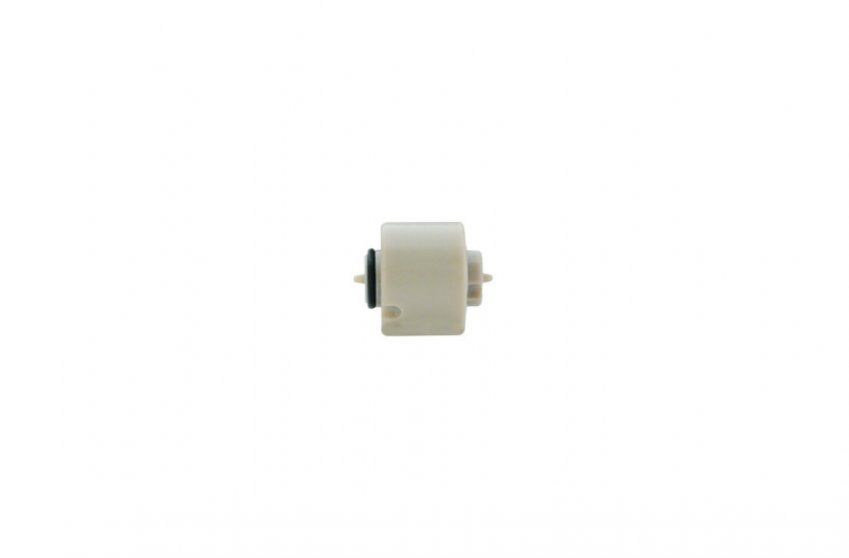

OPTI-LYNX™ Trap Cartridges
La combinación lechos empaquetados y con OPTI-LINX Holders de conexión rápida, ofrece numerosas opciones a los cromatógrafos para la limpieza y preconcentración de muestras en línea o fuera de línea. Cada cartucho comparte las mismas dimensiones externas, lo que le permite utilizar diferentes diámetros y porosidades con el mismo soporte.
- Clasificado para 6.000 psi.
- Perfecto para aplicaciones de captura de gran volumen.
- Disponible en paquetes de 5 cartuchos.
REF. | VOLUMEN LECHO | TASA CARGA | DIMENSIONES (mm) | FASE |
11-02868-TA | 4µL | 40-160µL/min | 1x5 | C18 |
11-02868-TD | 4µL | 40-160µL/min | 1x5 | C18 AQ |
11-02868-TF | 4µL | 40-160µL/min | 1x5 | C8 |
11-02868-TG | 4µL | 40-160µL/min | 1x5 | C4 |
11-02868-TL | 4µL | 40-160µL/min | 1x5 | Phenyl |
11-02868-TK | 4µL | 40-160µL/min | 1x5 | Cyano |
11-02868-TE | 4µL | 40-160µL/min | 1x5 | SAX |
11-02868-TB | 4µL | 40-160µL/min | 1x5 | SCX |
11-02868-DQ | 4µL | 40-160µL/min | 1x5 | DVB/SCX |
11-02868-TH | 4µL | 40-160µL/min | 1x5 | DVB |
11-02868-ES | 4µL | 40-160µL/min | 1x5 | Custom |
11-03787-TA | 10µL | 100-500µL/min | 1.5x5 | C18 |
11-03787-TD | 10µL | 100-500µL/min | 1.5x5 | C18 AQ |
11-03787-TF | 10µL | 100-500µL/min | 1.5x5 | C8 |
11-03787-TG | 10µL | 100-500µL/min | 1.5x5 | C4 |
11-03787-TL | 10µL | 100-500µL/min | 1.5x5 | Phenyl |
11-03787-TK | 10µL | 100-500µL/min | 1.5x5 | Cyano |
11-03787-TE | 10µL | 100-500µL/min | 1.5x5 | SAX |
11-03787-TB | 10µL | 100-500µL/min | 1.5x5 | SCX |
11-03787-DQ | 10µL | 100-500µL/min | 1.5x5 | DVB/SCX |
11-03787-TH | 10µL | 100-500µL/min | 1.5x5 | DVB |
11-03787-ES | 10µL | 100-500µL/min | 1.5x5 | Custom |
11-02870-TA | 20µL | 200-800µL/min | 2.1x5 | C18 |
11-02870-TD | 20µL | 200-800µL/min | 2.1x5 | C18 AQ |
11-02870-TF | 20µL | 200-800µL/min | 2.1x5 | C8 |
11-02870-TG | 20µL | 200-800µL/min | 2.1x5 | C4 |
11-02870-TL | 20µL | 200-800µL/min | 2.1x5 | Phenyl |
11-02870-TK | 20µL | 200-800µL/min | 2.1x5 | Cyano |
11-02870-TE | 20µL | 200-800µL/min | 2.1x5 | SAX |
11-02870-TB | 20µL | 200-800µL/min | 2.1x5 | SCX |
11-02870-DQ | 20µL | 200-800µL/min | 2.1x5 | DVB/SCX |
11-02870-TH | 20µL | 200-800µL/min | 2.1x5 | DVB |
11-02870-ES | 20µL | 200-800µL/min | 2.1x5 | Custom |
11-02872-TA | 40µL | 0.4-1.6mL/min | 3.0x5 | C18 |
11-02872-TD | 40µL | 0.4-1.6mL/min | 3.0x5 | C18 AQ |
11-02872-TF | 40µL | 0.4-1.6mL/min | 3.0x5 | C8 |
11-02872-TG | 40µL | 0.4-1.6mL/min | 3.0x5 | C4 |
11-02872-TL | 40µL | 0.4-1.6mL/min | 3.0x5 | Phenyl |
11-02872-TK | 40µL | 0.4-1.6mL/min | 3.0x5 | Cyano |
11-02872-TE | 40µL | 0.4-1.6mL/min | 3.0x5 | SAX |
11-02872-TB | 40µL | 0.4-1.6mL/min | 3.0x5 | SCX |
11-02872-DQ | 40µL | 0.4-1.6mL/min | 3.0x5 | DVB/SCX |
11-02872-TH | 40µL | 0.4-1.6mL/min | 3.0x5 | DVB |
11-02874-TA | 100µL | 1-4mL/min | 4.6X5 | C18 |
11-02874-TD | 100µL | 1-4mL/min | 4.6X5 | C18 AQ |
11-02874-TF | 100µL | 1-4mL/min | 4.6X5 | C8 |
11-02874-TG | 100µL | 1-4mL/min | 4.6X5 | C4 |
11-02874-TL | 100µL | 1-4mL/min | 4.6X5 | Phenyl |
11-02874-TK | 100µL | 1-4mL/min | 4.6X5 | Cyano |
11-02874-TE | 100µL | 1-4mL/min | 4.6X5 | SAX |
11-02874-TB | 100µL | 1-4mL/min | 4.6X5 | SCX |
11-02874-DQ | 100µL | 1-4mL/min | 4.6X5 | DVB/SCX |
11-02874-TH | 100µL | 1-4mL/min | 4.6X5 | DVB |
11-02874-ES | 100µL | 1-4mL/min | 4.6X5 | Custom |
