FITTINGS

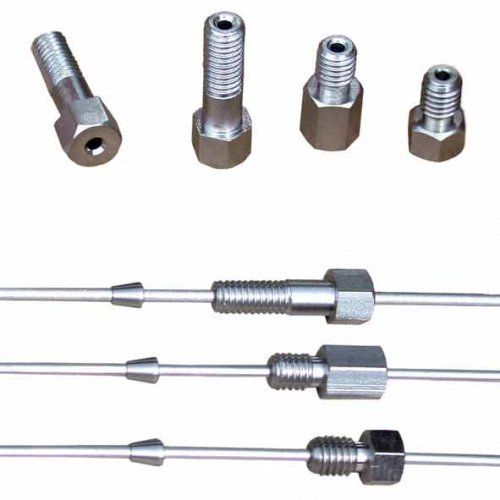

Todos los fittings y accesorios SS de Applied Research están fabricados con acero SS316L (DIN 1.4435). Nos enorgullecemos de nuestro trabajo y nos aseguramos de que solo usemos los mejores materiales disponibles.
Two Piece Nut/Ferrule combinations
Hex Head




Ref.
Descripción


58.6.1.062.210
Nut, SS, medium, 10 32


58.6.1.062.220
Nut, SS, short, 10 32


58.6.1.062.230
Nut, SS, x long, 10 32




Ferrules




Ref.
Descripción


59.6.0.062.00
Ferrule, SS, single, 1/16"


59.6.0.062.20
Ferrule, SS, single, 1/16", 2 step Rheodyne


59.1.0.062.20
Ferrule, PEEK, double, 1/16"


59.1.0.062.00
Ferrule, PEEK, single, 1/16"









Connectors
 UNION



Ref.
Descripción


55.6.20062.03 00
Union, SS, 10 32, bore 0.25 mm, body only


55.6.20062.03 01
Union, SS, 10 32, bore 0.25 mm, complete


55.6.20062.05 00
Union, SS, 10 32, bore 0.5 mm, body only


55.6.20062.05 01
Union, SS, 10 32, bore 0.5 mm, complete


55.6.20062.08 00
Union, SS, 10 32, bore 0.8 mm, body only


55.6.20062.08 01
Union, SS, 10 32, bore 0.8 mm, complete




TEE




Ref.
Descripción


55.6.30062.03 00
Tee, SS, 10 32, bore 0.25 mm, body only


55.6.30062.03 01
Tee, SS, 10 32, bore 0.25 mm, complete





CROSS




Ref.
Descripción


55.6.40062.03 00
Cross, SS, 10 32, bore 0.25 mm, body only


55.6.40062.03 01
Cross, SS, 10 32, bore 0.25 mm, complete

High Pressure Fittings SS
High Pressure Fittings SS
Los fitting y conectores de Blackline PEEK de Applied Research están moldeados con PEEK reforzado con grafito para una estabilidad mecánica y química insuperable.
BlackLine One Piece, High Pressure, 10 32 thread




Ref.
Descripción (10 pcs/pkg)


51.1.1.062.150
Fitting, PEEK, BlackLine one piece fingertight small head, 10 32


51.1.1.062.100
Fitting, PEEK, BlackLine one piece fingertight, 10 32


51.1.1.062.200
Fitting, PEEK, BlackLine one piece hex head, 10 32


51.1.1.062.300
Fitting, PEEK, BlackLine one piece wing, 10 32


51.1.1.062.240
Fitting, PEEK, BlackLine one piece fingertight narrow hex head, 10 32







Ref.
Descripción (2 pcs/pkg)


51.1.20062.05 00
Union, PEEK, BlackLine 10 32, bore 0.50 mm, body only


51.1.20062.05 01
Union, PEEK, BlackLine 10 32, bore 0.50 mm, complete


51.1.30062.05 00
Tee, PEEK, BlackLine 10 32, bore 0.50 mm, body only


51.1.30062.05 01
Tee, PEEK, BlackLine 10 32, bore 0.50 mm, complete


51.1.40062.05 00
Cross, PEEK, BlackLine 10 32, bore 0.50 mm, body only


51.1.40062.05 01
Cross, PEEK, BlackLine 10 32, bore 0.50 mm, complete




M6 thread





FOR USE WITH 1/16” CAPILLARY




Ref.
Descripción (10 pcs/pkg)


51.1.1.06062 03
Ferrule, ETFE, BlackLine M6, 1/16" capillary


51.8.1.06062 02
Nut, POM, BlackLine M6, 1/16" capillary


51.1.1.06062 01
Nut, PEEK, BlackLine M6, 1/16" capillary




FOR USE WITH 2 MM CAPILLARY




Ref.
Descripción (10 pcs/pkg)


51.1.1.06020 03
Ferrule, ETFE, BlackLine M6, 2 mm capillary


51.8.1.06020 02
Nut, POM, BlackLine M6, 2 mm capillary


51.1.1.06020 01
Nut, PEEK, BlackLine M6, 2 mm capillary




FOR USE WITH 3 MM CAPILLARY




Ref.
Descripción (10 pcs/pkg)


51.1.1.06030 03
Ferrule, ETFE, BlackLine M6, 3 mm capillary


51.8.1.06030 02
Nut, POM, BlackLine M6, 3 mm capillary


51.1.1.06030 01
Nut, PEEK, BlackLine M6, 3 mm capillary


















Ref.
Descripción (2 pcs/pkg)


51.8.2106.10 00
Union, POM, BlackLine M6, bore 1.0 mm, body only


51.8.2106.10 01
Union, POM, BlackLine M6, bore 1.0 mm, complete for 1/16" capillary


51.8.2106.10 02
Union, POM, BlackLine M6, bore 1.0 mm, complete for 3 mm capillary


51.8.2106.10 03
Union, POM, BlackLine M6, bore 1.0 mm, complete for 2 mm capillary


51.8.3106.10 00
Tee, POM, BlackLine M6, bore 1.0 mm, body only


51.8.3106.10 01
Tee, POM, BlackLine M6, bore 1.0 mm, complete for 1/16" capillary


51.8.3106.10 02
Tee, POM, BlackLine M6, bore 1.0 mm, complete for 3 mm capillary


51.8.3106.10 03
Tee, POM, BlackLine M6, bore 1.0 mm, complete for 2 mm capillary








BlackLine Reducing Connectors




Ref.
Descripción (2 pcs/pkg)


51.1.21125.10 00
Union, PEEK, reducing, BlackLine 10 32 to 1/4 28, bore 1.0 mm, body only


51.1.31125.10 01
Union, PEEK, reducing, BlackLine 10 32 to 1/4 28, bore 1.0 mm, complete


51.1.31125.10 00
Tee, PEEK, reducing, BlackLine 2 x 10 32 to 1/4 28, bore 1.0 mm, body only


51.1.21125.10 01
Tee, PEEK, reducing, BlackLine 2 x 10 32 to 1/4 28, bore 1.0 mm, complete



BlackLine Fittings an Connectors, Low Pressure, 1/4 28 thread




Ref.
Descripción (10 pcs/pkg)


51.2.1.04020 03
Ferrule, ETFE, BlackLine 1/4 28, 2 mm capillary


51.2.1.04030 03
Ferrule, ETFE, BlackLine 1/4 28, 3 mm capillary


51.2.1.04062 03
Ferrule, ETFE, BlackLine 1/4 28, 1/16" capillary


51.2.1.04125 03
Ferrule, ETFE, BlackLine 1/4 28, 1/8" capillary


51.1.1.04030 01
Nut, PEEK, BlackLine 1/4 28, 3 mm and 1/8" capillary


51.1.1.04062 01
Nut, PEEK, BlackLine 1/4 28, 1/16 capillary


51.1.1.04020 01
Nut, PEEK, BlackLine 1/4 28, 2 mm capillary


51.8.1.04030 02
Nut, POM, BlackLine 1/4 28, 3 mm and 1/8" capillary


51.8.1.04062 02
Nut, POM, BlackLine 1/4 28, 1/16" capillary


51.8.1.04020 02
Nut, POM, BlackLine 1/4 28, 2 mm capillary



Union, TEE and Cross, 1/4 28




Ref.
Descripción (2 pcs/pkg)


51.1.21125.10 00
Union, PEEK, BlackLine 1/4 28, bore 1.0 mm, body only


51.1.21125.10 01
Union, PEEK, BlackLine 1/4 28, bore 1.0 mm, complete for 1/16" capillary


51.1.21125.10 02
Union, PEEK, BlackLine 1/4 28, bore 1.0 mm, complete for 1/8" capillary


51.1.31125.10 00
Tee, PEEK, BlackLine 1/4 28, bore 1.0 mm, body only


51.1.31125.10 01
Tee, PEEK, BlackLine 1/4 28, bore 1.0 mm, complete for 1/16" capillary


51.1.31125.10 02
Tee, PEEK, BlackLine 1/4 28, bore 1.0 mm, complete for 1/8" capillary


51.1.41125.10 00
Cross, PEEK, BlackLine 1/4 28, bore 1.0 mm, body only


51.1.41125.10 01
Cross, PEEK, BlackLine 1/4 28, bore 1.0 mm, complete for 1/16" capillary


51.1.41125.10 02
Cross, PEEK, BlackLine 1/4 28, bore 1.0 mm, complete for 1/8" capillary

BlackLine PEEK Fittings and Connectors
BlackLine PEEK Fittings and Connectors

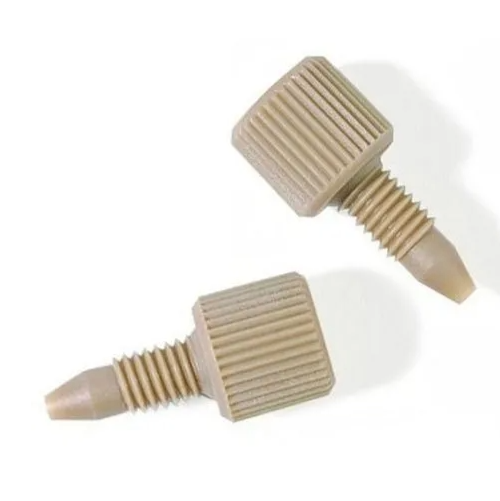

Todos los fitting estándar y conectores de Applied Research están fabricados con PEEK virgen.
One Piece Fittings

Fingertight




Ref.
Desscripción


52.1.1.062.100
Fitting, PEEK, one piece fingertight, 10 32


52.1.1.062.110
Fitting, PEEK, one piece fingertight long, 10 32


52.1.1.062.240
Fitting, PEEK, one piece fingertight narrow hex head, 10 32


52.1.1.062.190
Fitting, PEEK, one piece fingertight short head, 10 32



Hex Head



Ref.
Desscripción


52.1.1.062.210
Fitting, PEEK, one piece hex head long, 10 32


52.1.1.062.220
Fitting, PEEK, one piece hex head short, 10 32



Combi Head




Ref.
Desscripción


52.1.1.062.500
Fitting, PEEK, one piece natural, combi head


52.1.1.062.501
Fitting, PEEK, one piece red, combi head


52.1.1.062.502
Fitting, PEEK, one piece yellow, combi head


52.1.1.062.503
Fitting, PEEK, one piece blue, combi head


52.1.1.062.505
Fitting, PEEK, one piece green, combi head


52.1.1.062.507
Fitting, PEEK, one piece black, combi head





Two Piece Nut/Ferrule combinations

Fingertight




Ref.
Desscripción


58.1.1.062.100
Nut, PEEK, fingertight for double ferrule, 10 32


58.1.1.062.160
Nut, PEEK, fingertight for single ferrule, 10 32




Hex Head





Ref.
Desscripción


58.1.1.062.210
Nut, PEEK, hex head long for double ferrule, 10 32


58.1.1.062.220
Nut, PEEK, hex head short for double ferrule, 10 32



Ferrules




Ref.
Desscripción


59.1.0.062.20
Ferrule, PEEK, double, 1/16"


59.1.0.062.00
Ferrule, PEEK, single, 1/16"


59.1.0.062.10
Ferrule, PEEK, solid cone, 10 32


59.1.0.062.30
Ferrule, PEEK, special, 1/16" (for use with our PEEK sample loops)




Connectors
Union





Ref.
Desscripción


55.1.20062.03 00
Union, PEEK, 10 32, bore 0.3 mm, body only


55.1.20062.03 01
Union, PEEK, 10 32, bore 0.3 mm, complete




Tee





Ref.
Desscripción


55.1.30062.03 00
Tee, PEEK, 10 32, bore 0.3 mm, body only


55.1.30062.03 01
Tee, PEEK, 10 32, bore 0.3 mm, complete




Mixing Tee




Ref.
Desscripción


55.1.33362.03 01
Tee, PEEK, mixing, complete




Cross




Ref.
Desscripción


55.1.40062.03 00
Cross, PEEK, 10 32, bore 0.3 mm, body only


55.1.40062.03 01
Cross, PEEK, 10 32, bore 0.3 mm, complete

High Pressure Fittings PEEK
High Pressure Fittings PEEK

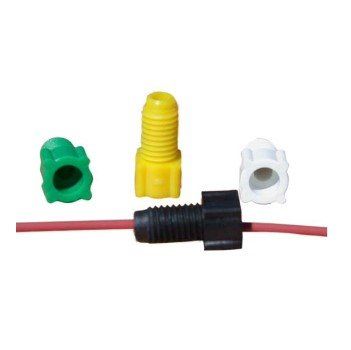

Applied Research ofrece una amplia variedad de fittings y accesorios par aplicaciones a baja y media presión.
Flanged Fitting Series

For 1/16” tubing




Ref.
Descripción


57.9.2.062.40
Nut, PP, flanged white 1/16", 1/4 28


57.9.2.062.41
Nut, PP, flanged red 1/16", 1/4 28


57.9.2.062.42
Nut, PP, flanged yellow 1/16", 1/4 28


57.9.2.062.43
Nut, PP, flanged blue 1/16", 1/4 28


57.9.2.062.45
Nut, PP, flanged green 1/16", 1/4 28


57.9.2.062.47
Nut, PP, flanged black 1/16", 1/4 28


57.9.2.062.90
Washer, PP, for flanged nut 1/16"




For 1/8” tubing




Ref.
Descripción


57.9.2.125.40
Nut, PP, flanged white 1/8", 1/4 28


57.9.2.125.41
Nut, PP, flanged red 1/8", 1/4 28


57.9.2.125.42
Nut, PP, flanged yellow 1/8", 1/4 28


57.9.2.125.43
Nut, PP, flanged blue 1/8", 1/4 28


57.9.2.125.45
Nut, PP, flanged green 1/8", 1/4 28


57.9.2.125.47
Nut, PP, flanged black 1/8", 1/4 28


57.9.2.125.90
Washer, PP, for flanged nut 1/8"




Flanging Tool


Flanging tool kits




Ref.
Descripción


70.0100.001
Flangy, kit in plastic case (flanging tool with 4 flanging discs)


70.0100.002
Flangy, combi kit in plastic case (flanging tool with 4 flanging discs PTFE tubing, selection of flanged nuts and PP rings)




Flanging tool spare parts




Ref.
Descripción


70.0100.105
Flangy, flanging disc with 0.5 mm SS pin for PEEK tubing


70.0100.108
Flangy, flanging disc with 0.8 mm polymer pin


70.0100.308
Flangy, flanging disc with 0.8 mm Titanium pin


70.0100.110
Flangy, flanging disc with 1.0 mm polymer pin


70.0100.113
Flangy, flanging disc with 1.3 mm polymer pin


70.0100.313
Flangy, flanging disc with 1.3 mm Titanium pin


70.0100.115
Flangy, flanging disc with 1.5 mm polymer pin


70.0101.010
Flangy, clamp pair. Spare part for 70.0100.00x




Flange free Fitting Series

PEEK fitting for 1/16 tubing




Ref.
Descripción


58.1.2.062.40
Nut, PEEK, flangefree natural 1/16", 1/4 28


58.1.2.062.41
Nut, PEEK, flangefree red 1/16", 1/4 28


58.1.2.062.42
Nut, PEEK, flangefree yellow 1/16", 1/4 28


58.1.2.062.43
Nut, PEEK, flangefree blue 1/16", 1/4 28


58.1.2.062.45
Nut, PEEK, flangefree green 1/16", 1/4 28


58.1.2.062.47
Nut, PEEK, flangefree black 1/16", 1/4 28


59.2.1.062.00
Ferrule, PTFE, single, 1/16"


59.5.1.062.00
Ferrule, ETFE, single, 1/16"


59.10.1.062.00
Ferrule, KEL F, single, 1/16"




PEEK fitting for 1/8 tubing




Ref.
Descripción


58.1.2.125.40
Nut, PEEK, flangefree natural 1/8", 1/4 28


58.1.2.125.41
Nut, PEEK, flangefree red 1/8", 1/4 28


58.1.2.125.42
Nut, PEEK, flangefree yellow 1/8", 1/4 28


58.1.2.125.43
Nut, PEEK, flangefree blue 1/8", 1/4 28


58.1.2.125.45
Nut, PEEK, flangefree green 1/8", 1/4 28


58.1.2.125.47
Nut, PEEK, flangefree black 1/8", 1/4 28


59.1.1.125.00
Ferrule, PEEK, single, 1/8"


59.5.1.125.00
Ferrule, ETFE, single, 1/8"




Delrin fitting for 1/16 tubing




Ref.
Descripción


58.8.2.062.41
Nut, Delrin, flangeless red 1/16", 1/4 28


58.8.2.062.42
Nut, Delrin, flangeless yellow 1/16", 1/4 28


58.8.2.062.43
Nut, Delrin, flangeless blue 1/16", 1/4 28


58.8.2.062.45
Nut, Delrin, flangeless green 1/16", 1/4 28


58.8.2.062.47
Nut, Delrin, flangeless black 1/16", 1/4 28


58.8.2.062.48
Nut, Delrin, flangeless white 1/16", 1/4 28


59.2.1.062.00
Ferrule, PTFE, single, 1/16"


59.5.1.062.00
Ferrule, ETFE, single, 1/16"




Delrin fitting for 1/8 tubing




Ref.
Descripción


58.8.2.125.41
Nut, Delrin, flangeless 1/8", red, 1/4 28


58.8.2.125.42
Nut, Delrin, flangeless 1/8", yellow, 1/4 28


58.8.2.125.43
Nut, Delrin, flangeless 1/8", blue, 1/4 28


58.8.2.125.45
Nut, Delrin, flangeless 1/8", green, 1/4 28


58.8.2.125.47
Nut, Delrin, flangeless 1/8", black, 1/4 28


58.8.2.125.48
Nut, Delrin, flangeless 1/8", white, 1/4 28


59.5.1.125.00
Ferrule, ETFE, single, 1/8"





Accessories for low and Medium Pressure FItting Series

Ferrules




Ref.
Descripción


59.2.1.062.00
Ferrule, PTFE, single, 1/16"


59.5.1.062.00
Ferrule, ETFE, single, 1/16"


59.10.1.062.00
Ferrule, KEL F, single, 1/16"


59.1.1.125.00
Ferrule, PEEK, single, 1/8"


59.5.1.125.00
Ferrule, ETFE, single, 1/8"


59.10.1.125.70
Ferrule, KEL F, single, for No Ox fitting


59.2.2.062.00
Ferrule, PTFE, reducing, 1/8"   1/16"




Unions




Ref.
Descripción


55.1.21125.08 00
Union, PEEK, 1/4 28, bore 0.8 mm, body only


55.1.21125.08 01
Union, PEEK, 1/4 28, bore 0.8 mm, complete


55.1.21125.15 00
Union, PEEK, 1/4 28, bore 1.5 mm, body only


55.1.21125.15 01
Union, PEEK, 1/4 28, bore 1.5 mm, complete


55.8.20125.00 00
Union, Nylon, 1/4 28, body only




TEES




Ref.
Descripción


55.1.31125.08 00
TEE, PEEK, 1/4 28, bore 0.8 mm, body only


55.1.31125.08 01
TEE, PEEK, 1/4 28, bore 0.8 mm, complete


55.1.31125.15 00
TEE, PEEK, 1/4 28, bore 1.5 mm, body only


55.1.31125.15 01
TEE, PEEK, 1/4 28, bore 1.5 mm, complete




Cross




Ref.
Descripción


55.1.41125.08 00
Cross, PEEK, 1/4 28, bore 0.8 mm, body only


55.1.41125.08 01
Cross, PEEK, 1/4 28, bore 0.8 mm, complete


55.1.41125.15 00
Cross, PEEK, 1/4 28, bore 1.5 mm, body only


55.1.41125.15 01
Cross, PEEK, 1/4 28, bore 1.5 mm, complete




Plug




Ref.
Descripción


53.1.200400 00
Plug, PEEK, 10 32


53.1.200500 00
Plug, PEEK, 1/4 28


53.1.200600 00
Plug, PEEK, M6

Low and Medium Pressure Fittings
Low and Medium Pressure Fittings
Línea de adaptadores adecuada para el uso con conexiones de baja y media presión de Applied Research.
PEEK Adapter




Ref.
Descripción


53.1.0401.13
Adapter, PEEK, 10 32 female to female Luer, 1.3 mm bore


53.1.0405.03
Adapter, PEEK, 10 32 female to 1/4 28 female, 0.25 mm bore


53.1.0451.13
Adapter, PEEK, 10 32 female to male Luer, 1.3 mm bore


53.1.0455.04
Adapter, PEEK, 10 32 female to 1/4 28 male, 0.4 mm bore


53.1.0456.04
Adapter, PEEK, 10 32 female to M6 male, 0.4 mm bore


53.1.0457.04
Adapter, PEEK, 10 32 female to Waters male, 0.4 mm bore


53.1.0501.13
Adapter, PEEK, 1/4 28 female to female Luer, 1.3 mm bore


53.1.0551.13
Adapter, PEEK, 1/4 28 female to male Luer, 1.3 mm bore


53.1.0554.04
Adapter, PEEK, 1/4 28 female to 10 32 male, 0.4 mm bore


53.1.0556.04
Adapter, PEEK, 1/4 28 female to M6 male, 0.4 mm bore


53.1.0557.04
Adapter, PEEK, 1/4 28 female to Waters male, 0.4 mm bore


53.1.0601.13
Adapter, PEEK, M6 female to female Luer, 1.3 mm bore


53.1.0651.13
Adapter, PEEK, M6 female to male Luer, 1.3 mm bore


53.1.0654.04
Adapter, PEEK, M6 female to 10 32 male, 0.4 mm bore


53.1.0655.04
Adapter, PEEK, M6 female to 1/4 28 male, 0.4 mm bore


53.1.0657.04
Adapter, PEEK, M6 female to Waters male, 0.4 mm bore


53.1.0754.04
Adapter, PEEK, Waters female to 10 32 male, 0.4 mm bore


53.1.0755.04
Adapter, PEEK, Waters female to 1/4 28 male, 0.4 mm bore


53.1.0756.04
Adapter, PEEK, Waters female to M6 male, 0.4 mm bore





Polypropylen Adapter




Ref.
Descripción


53.9.200101
Adapter, PP, female to female Luer


53.9.200111
Adapter, PP, female Luer to 1/16" barbed


53.9.200112
Adapter, PP, female Luer to 3/32" barbed


53.9.200113
Adapter, PP, female Luer to 1/8" barbed


53.9.200124
Adapter, PP, female Luer to 10 32 male


53.9.200125
Adapter, PP, female Luer to 1/4 28 female


53.9.200211
Adapter, PP, male Luer to 1/16" barbed


53.9.200212
Adapter, PP, male Luer to 3/32" barbed


53.9.200213
Adapter, PP, male Luer to 1/8" barbed


53.9.200224
Adapter, PP, male Luer to 10 32 male


53.9.200225
Adapter, PP, male Luer to 1/4 28 female


53.9.201111
Adapter, PP, barbed connector 1/16"


53.9.201112
Adapter, PP, barbed connector 3/32"


53.9.201113
Adapter, PP, barbed connector 1/8"


53.9.201211
Adapter, PP, barbed connector 3/32" to 1/16"


53.9.201311
Adapter, PP, barbed connector 1/16" to 1/8"


53.9.201312
Adapter, PP, barbed connector 3/32" to 1/8"


53.9.309411
TEE, PP, barbed for 1/16" tubing


53.9.309412
TEE, PP, barbed for 3/32" tubing


53.9.309413
TEE, PP, barbed for 1/8" tubing


53.9.309516
TEE, PP, barbed 2 x 1/16" to 3/32" tubing


53.9.309517
TEE, PP, barbed 2 x 1/16" to 1/8" tubing


53.9.309518
TEE, PP, barbed 2 x 2/32" to 1/16" tubing


53.9.309911
TEE, PP, Y formed barbed 1/16" tubing


53.9.309912
TEE, PP, Y formed barbed 3/32" tubing


53.9.309913
TEE, PP, Y formed barbed 1/8" tubing


53.9.200350
Plug, PP, male Luer

Low and Medium Pressure Adapters
Low and Medium Pressure Adapters
