FILTROS Y FRITS

Applied Research ofrece una gama de fritas biocompatibles para satisfacer las necesidades de todos los cromógrafos.
Titanium Filter Discs




Ref.
Diameter inInch / mm
Thickness inInch / mm
Pore Size inµm


12.181.62.005 00
0.181 / 4.60
0.062 / 1.57
0.5


12.181.62.020 00
0.181 / 4.60
0.062 / 1.57
2


12.250.39.005 00
0.250 / 6.35
0.039 / 0.99
0.5


12.250.39.020 00
0.250 / 6.35
0.039 / 0.99
2


12.375.62.050 00
0.375 / 9.53
0.062 / 1.57
5




PAT Filter Discs PEEK encased




Ref.
Ring Diameter inInch / mm
Frit Diameter inInch / mm
Thickness inInch / mm
Pore Size inµm


161.250.188.050
0.250 / 6.35
0.188 / 4.78
0.062 / 1.57
5





Titanium Filter Discs PEEK Encased




Ref.
Ring Diameter inInch / mm
Frit Diameter inInch / mm
Thickness inInch / mm
Pore Size inµm


121.250.125 005
0.25 / 6.35
0.125 / 3.18
0.062 / 1.57
0.5


121.250.125 020
0.25 / 6.35
0.125 / 3.18
0.062 / 1.57
2


121.250.153 005
0.25 / 6.35
0.153 / 3.89
0.062 / 1.57
0.5


121.250.153 020
0.25 / 6.35
0.153 / 3.89
0.062 / 1.57
2


121.250.181 005
0.25 / 6.35
0.181 / 4.60
0.062 / 1.57
0.5


121.250.181 020
0.25 / 6.35
0.181 / 4.60
0.062 / 1.57
2

Biocompatible Filter Discs
Biocompatible Filter Discs
Todos los discos de filtro Applied Research SS están fabricados a partir de acero SS316L (DIN 1.4435).
SS Filter Discs




Ref.
Diameter inInch / mm
Thickness inInch / mm
Pore Size inµm


11.062.39.005 00
0.062 / 1.57
0.039 / 0.99
0.5


11.062.39.020 00
0.062 / 1.57
0.039 / 0.99
2


11.062.39.050 00
0.062 / 1.57
0.039 / 0.99
5


11.062.62.005 00
0.062 / 1.57
0.062 / 1.57
0.5


11.062.62.020 00
0.062 / 1.57
0.062 / 1.57
2


11.062.62.050 00
0.062 / 1.57
0.062 / 1.57
5


11.062.62.100 00
0.062 / 1.57
0.062 / 1.57
10


11.082.62.020 00
0.082 / 2.08
0.062 / 1.57
2


11.093.62.005 00
0.093 / 2.36
0.062 / 1.57
0.5


11.093.62.020 00
0.093 / 2.36
0.062 / 1.57
2


11.093.62.050 00
0.093 / 2.36
0.062 / 1.57
5


11.093.62.100 00
0.093 / 2.36
0.062 / 1.57
10


11.125.39.005 00
0.125 / 3.18
0.039 / 0.99
0.5


11.125.39.020 00
0.125 / 3.18
0.039 / 0.99
2


11.125.39.050 00
0.125 / 3.18
0.039 / 0.99
5


11.125.39.100 00
0.125 / 3.18
0.039 / 0.99
10


11.125.62.005 00
0.125 / 3.18
0.039 / 0.99
0.5


11.125.62.020 00
0.125 / 3.18
0.039 / 0.99
2


11.125.62.050 00
0.125 / 3.18
0.039 / 0.99
5


11.125.62.100 00
0.125 / 3.18
0.039 / 0.99
10


11.156.39.020 00
0.156 / 3.96
0.039 / 0.99
2


11.156.62.005 00
0.156 / 3.96
0.062 / 1.57
0.5


11.156.62.020 00
0.156 / 3.96
0.062 / 1.57
2


11.181.62.005 00
0.181 / 4.6
0.062 / 1.57
0.5


11.181.62.020 00
0.181 / 4.6
0.062 / 1.57
2


11.188.62.005 00
0.188 / 4.78
0.062 / 1.57
0.5


11.188.62.020 00
0.188 / 4.78
0.062 / 1.57
2


11.188.62.050 00
0.188 / 4.78
0.062 / 1.57
5


11.188.62.100 00
0.188 / 4.78
0.062 / 1.57
10


11.197.39.005 00
0.197 / 5.00
0.039 / 0.99
0.5


11.205.59.020 00
0.205 / 5.21
0.059 / 1.5
2


11.250.39.001 00
0.25 / 6.35
0.039 / 0.99
0.1


11.250.39.005 00
0.25 / 6.35
0.039 / 0.99
0.5


11.250.39.020 00
0.25 / 6.35
0.039 / 0.99
2


11.250.39.050 00
0.25 / 6.35
0.039 / 0.99
0.5


11.250.39.100 00
0.25 / 6.35
0.039 / 0.99
10


11.250.62.005 00
0.25 / 6.35
0.039 / 0.99
0.5


11.250.62.020 00
0.25 / 6.35
0.039 / 0.99
2


11.250.62.050 00
0.25 / 6.35
0.039 / 0.99
5


11.250.62.100 00
0.25 / 6.35
0.039 / 0.99
10


11.375.39.005 00
0.375 / 9.53
0.039 / 0.99
0.5


11.375.39.020 00
0.375 / 9.53
0.039 / 0.99
2


11.375.62.020 00
0.375 / 9.53
0.062 / 1.57
2


11.500.62.005 00
0.5 / 12.7
0.062 / 1.57
0.5


11.500.62.020 00
0.5 / 12.7
0.062 / 1.57
2


11.500.62.050 00
0.5 / 12.7
0.062 / 1.57
5


11.750.62.020 00
0.75 / 19.05
0.062 / 1.57
2


11.750.62.100 00
0.75 / 19.05
0.062 / 1.57
10


11.1.62.005 00
1 / 25.4
0.062 / 1.57
0.5


11.1.62.020 00
1 / 25.4
0.062 / 1.57
2


11.1.62.050 00
1 / 25.4
0.062 / 1.57
5


11.1.62.100 00
1 / 25.4
0.062 / 1.57
10






SS Filter Discs PEEK Encased




Ref.
Ring Diameter inInch / mm
Frit Diameter inInch / mm
Thickness inInch / mm
Pore Size inµm


111.250.078 005
0.250 / 6.350
0.078 / 2.000
0.062 / 1.580
0.5


111.250.078 020
0.250 / 6.350
0.078 / 2.000
0.062 / 1.580
2


111.250.125 005
0.250 / 6.350
0.125 / 3.175
0.062 / 1.575
0.5


111.250.125 020
0.250 / 6.350
0.125 / 3.175
0.062 / 1.575
2


111.250.153 005
0.250 / 6.350
0.153 / 3.886
0.062 / 1.575
0.5


111.250.153 020
0.250 / 6.350
0.153 / 3.886
0.062 / 1.575
2


111.250.181 005
0.250 / 6.350
0.181 / 4.597
0.062 / 1.575
0.5


111.250.181 020
0.250 / 6.350
0.181 / 4.597
0.062 / 1.575
2


112.250.125 005
0.250 / 6.350
0.125 / 3.175
0.032 / 0.813
0.5


112.250.125 020
0.250 / 6.350
0.125 / 3.175
0.032 / 0.813
2


112.250.153 005
0.250 / 6.350
0.153 / 3.886
0.032 / 0.813
0.5


112.250.153 020
0.250 / 6.350
0.153 / 3.886
0.032 / 0.813
2


112.250.181 005
0.250 / 6.350
0.181 / 4.597
0.032 / 0.813
0.5


112.250.181 020
0.250 / 6.350
0.181 / 4.597
0.032 / 0.813
2


113.118.038 005
0.118 / 2.997
0.038 / 0.965
0.028 / 0.711
0.5


113.118.038 020
0.118 / 2.997
0.038 / 0.965
0.028 / 0.711
2


113.118.038 050
0.118 / 2.997
0.038 / 0.965
0.028 / 0.711
0.5


113.118.077 005
0.118 / 2.997
0.077 / 1.956
0.028 / 0.711
2


113.118.077 020
0.118 / 2.997
0.077 / 1.956
0.028 / 0.711
0.5


113.118.077 050
0.118 / 2.997
0.077 / 1.956
0.028 / 0.711
2


113.260.173.050
0.260 / 6.604
0.173 / 4.394
Hibar frit
5


118.260.173.050
0.260 / 6.604
0.173 / 4.394
Hibar frit
5






SS Filter Discs
SS Filter Discs
Los discos Hastelloy (C22) son una alternativa al acero inoxidablepara aplicaciones que exigen materiales altamente inertes.




Ref.
Inch / mm
Thickness inInch / mm
Pore size inµm


13.205.39.005 00
0.205 / 5.207
0.039 / 0.991
0.5


13.205.39.005 01
0.205 / 5.207
0.039 / 0.991
0.5


13.205.39.020 00
0.205 / 5.207
0.039 / 0.991
2.0


13.250.39.020 00
0.250 / 6.350
0.039 / 0.991
2.0

Hastelloy Filter Discs
Hastelloy Filter Discs
Applied Research ofrece una gama de filtros de disolventes con diferentes tipos de conexión de tubos fabricados a partir de acero SS316L (DIN 1.4435).
1/16” OD stem




Ref.
Diameter inInch / mm
Length inInch / mm
Pore Size inµm


221.375.63 02
0.375 / 9.53
0.630 / 16.00
2


221.375.63 05
0.375 / 9.53
0.630 / 16.00
5


221.375.1 02
0.375 / 9.53
1.000 / 25.40
2


221.375.1 05
0.375 / 9.53
1.000 / 25.40
5


221.375.1 10
0.375 / 9.53
1.000 / 25.40
10


221.500.1 02
0.500 / 12.70
1.000 / 25.40
2


221.500.1 05
0.500 / 12.70
1.000 / 25.40
5


221.500.1 10
0.500 / 12.70
1.000 / 25.40
10




1/8” OD Stem




Ref.
Diameter inInch / mm
Length inInch / mm
Pore Size inµm


222.500.1 02
0.500 / 12.70
1.000 / 25.40
2


222.500.1 05
0.500 / 12.70
1.000 / 25.40
5


222.500.1 10
0.500 / 12.70
1.000 / 25.40
10


222.680.1 02
0.680 / 17.27
1.000 / 25.40
2


222.680.1 05
0.680 / 17.27
1.000 / 25.40
5


222.680.1 10
0.680 / 17.27
1.000 / 25.40
10




5 40 Internal Thread for 1/8” Tubing




Ref.
Diameter inInch / mm
Length inInch / mm
Pore Size inµm


225.375.63 02
0.375 / 9.53
0.630 / 16.00
2


225.375.63 05
0.375 / 9.53
0.630 / 16.00
5


225.375.63 10
0.375 / 9.53
0.630 / 16.00
10


225.375.1 02
0.375 / 9.53
1.000 / 25.40
2


225.375.1 05
0.375 / 9.53
1.000 / 25.40
5


225.375.1 10
0.375 / 9.53
1.000 / 25.40
10


225.500.1 02
0.500 / 12.70
1.000 / 25.40
25


225.500.1 05
0.500 / 12.70
1.000 / 25.40
5


225.500.1 10
0.500 / 12.70
1.000 / 25.40
10


225.680.1 02
0.500 / 12.70
1.000 / 25.40
2


225.680.1 05
0.500 / 12.70
1.000 / 25.40
5


225.680.1 10
0.500 / 12.70
1.000 / 25.40
10




SS Mobile Phase Filter




Ref.
Descripción


220.375.1 020.1
Filter, SS, mobile phase 2 µm, fittings for 1/16"


220.375.1 020.2
Filter, SS, mobile phase 2 µm, fittings for 1/8"


220.375.1 020.3
Filter, SS, mobile phase 2 µm, tripod tubing adapter


220.375.1 100.1
Filter, SS, mobile phase 10 µm, fittings for 1/16"


220.375.1 100.2
Filter, SS, mobile phase 10 µm, fittings for 1/8"


220.375.1 100.3
Filter, SS, mobile phase 10 µm, tripod tubing adapter


220.375.1 200.1
Filter, SS, mobile phase 20 µm, fittings for 1/16"


220.375.1 200.2
Filter, SS, mobile phase 20 µm, fittings for 1/8"


220.375.1 200.3
Filter, SS, mobile phase 20 µm, tripod tubing adapter




SS Last Drop and Last Drop Economy Filter




Ref.
Descripción


250.750.6 020.1
Filter, SS, Last Drop 2 µm, fittings for 1/16”


250.750.6 020.2
Filter, SS, Last Drop 2 µm, fittings for 1/8”


250.750.6 020.3
Filter, SS, Last Drop 2 µm, tripod tubing connector


250.750.6 050.1
Filter, SS, Last Drop 5 µm, fittings for 1/16”


250.750.6 050.2
Filter, SS, Last Drop 5 µm, fittings for 1/8”


250.750.6 050.3
Filter, SS, Last Drop 5 µm, tripod tubing connector


250.750.6 100.1
Filter, SS, Last Drop 10 µm, fittings for 1/16”


250.750.6 100.2
Filter, SS, Last Drop 10 µm, fittings for 1/8”


250.750.6 100.3
Filter, SS, Last Drop 10 µm, tripod tubing connector


240.750.6 020
Filter, SS, Last Drop economy 2 µm, 25 mm diam.


240.750.6 050
Filter, SS, Last Drop economy 5 µm, 25 mm diam.


240.750.6 100
Filter, SS, Last Drop economy 10 µm, 25 mm diam.

Solvent Filter SS
Solvent Filter SS
Para uso biocompatible, Applied Research ofrece una gama de filtros en línea y filtros para disolventes hechos de PEEK y / o titanio.

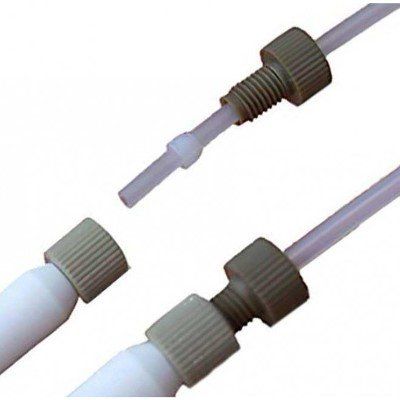

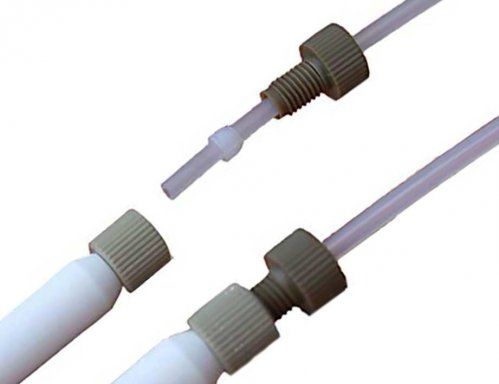

Biocompatible Solvent Filter








Ref.
Descripción


250.55.10.9.200.1
Solvent Filter, PE, biocompatible 20 µm, complete, fitting for 1/16”


250.55.10.9.200.2
Solvent Filter, PE, biocompatible 20 µm, complete, fitting for 1/8”


250.55.10.9.200.3
Solvent Filter, PE, biocompatible 20 µm, complete, tripod tubing connector


250.55.10.9.200.0
Solvent Filter, PE, biocompatible 20 µm, replacement filter

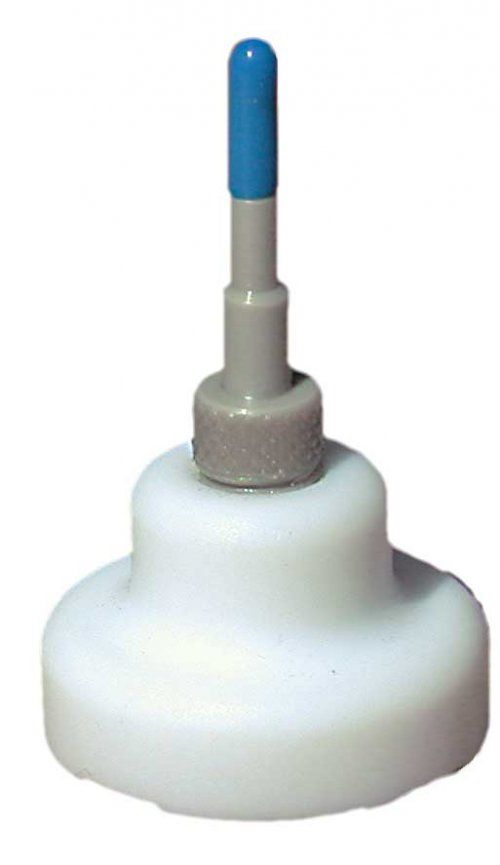

PTFE Last Drop and Last Drop Economy Filter









Ref.
Descripción


250.750.1 025.1
Filter, PTFE, Last Drop 2.5 µm, fittings for 1/16”


250.750.1 025.2
Filter, PTFE, Last Drop 2.5 µm, fittings for 1/8”


250.750.1 025.3
Filter, PTFE, Last Drop 2.5 µm, tripod tubing connector


250.750.1 050.1
Filter, PTFE, Last Drop 5 µm, fittings for 1/16”


250.750.1 050.2
Filter, PTFE, Last Drop 5 µm, fittings for 1/8”


250.750.1 050.3
Filter, PTFE, Last Drop 5 µm, tripod tubing connector


250.750.1 100.1
Filter, PTFE, Last Drop 10 µm, fittings for 1/16”


250.750.1 100.2
Filter, PTFE, Last Drop 10 µm, fittings for 1/8”


250.750.1 100.3
Filter, PTFE, Last Drop 10 µm, tripod tubing connector


240.750.1 025
Filter, PTFE, Last Drop economy 2.5 µm, 25 mm diam.


240.750.1 050
Filter, PTFE, Last Drop economy 5 µm, 25 mm diam.


240.750.1 100
Filter, PTFE, Last Drop economy 10 µm, 25 mm diam.

Solvent Filters Polymer
Solvent Filters Polymer
Para la exigente aplicación preparativa, Applied Research Europe también ofrece una línea de discos filtrantes tejidos y sinterizados.




Ref.
Inch / mm
Tickness inInch / mm
Porosity inµm


14.787.67.020 01
0.787 / 20
0.067 / 1.7
2


14.787.67.050 01
0.787 / 20
0.067 / 1.7
5


14.24.17.005 00
0.945 / 24
0.067 / 1.7
5


14.24.19.300 00
0.945 / 24
0.075 / 1.9
300


14.54.17.002 00
2.126 / 54
0.064 / 1.7
2


14.54.19.002 00
2.126 / 54
0.075 / 1.9
2


14.54.50.002 00
2.126 / 54
0.197 / 5.0
2


14.54.50.002 01
2.126 / 54
0.197 / 5.0
2


14.83.50.005 00
3.268 / 83
0.197 / 5.0
5


14.107.50.002 01
4.213 / 107
0.197 / 5.0
2

PoroMet Filters
PoroMet Filters
